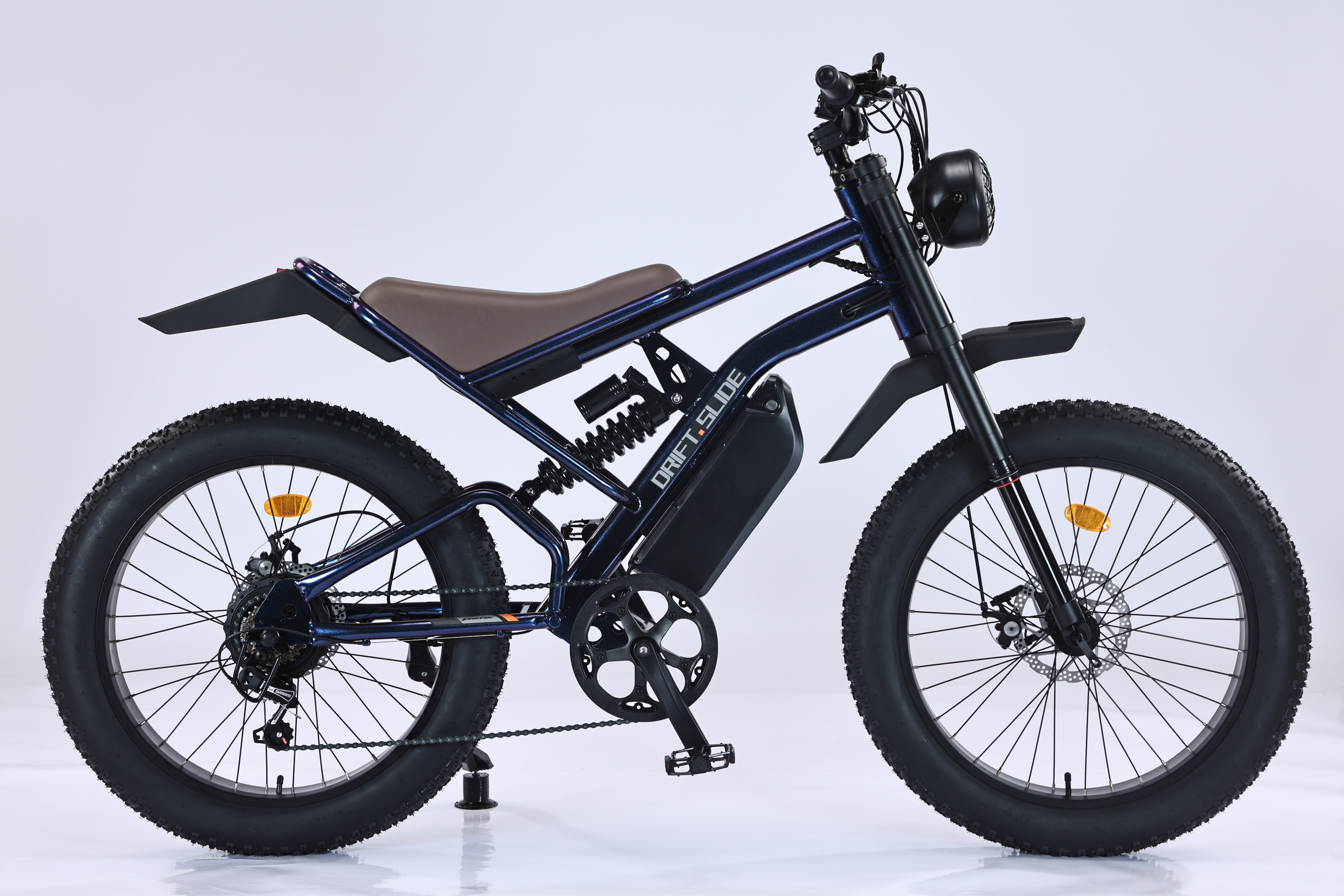

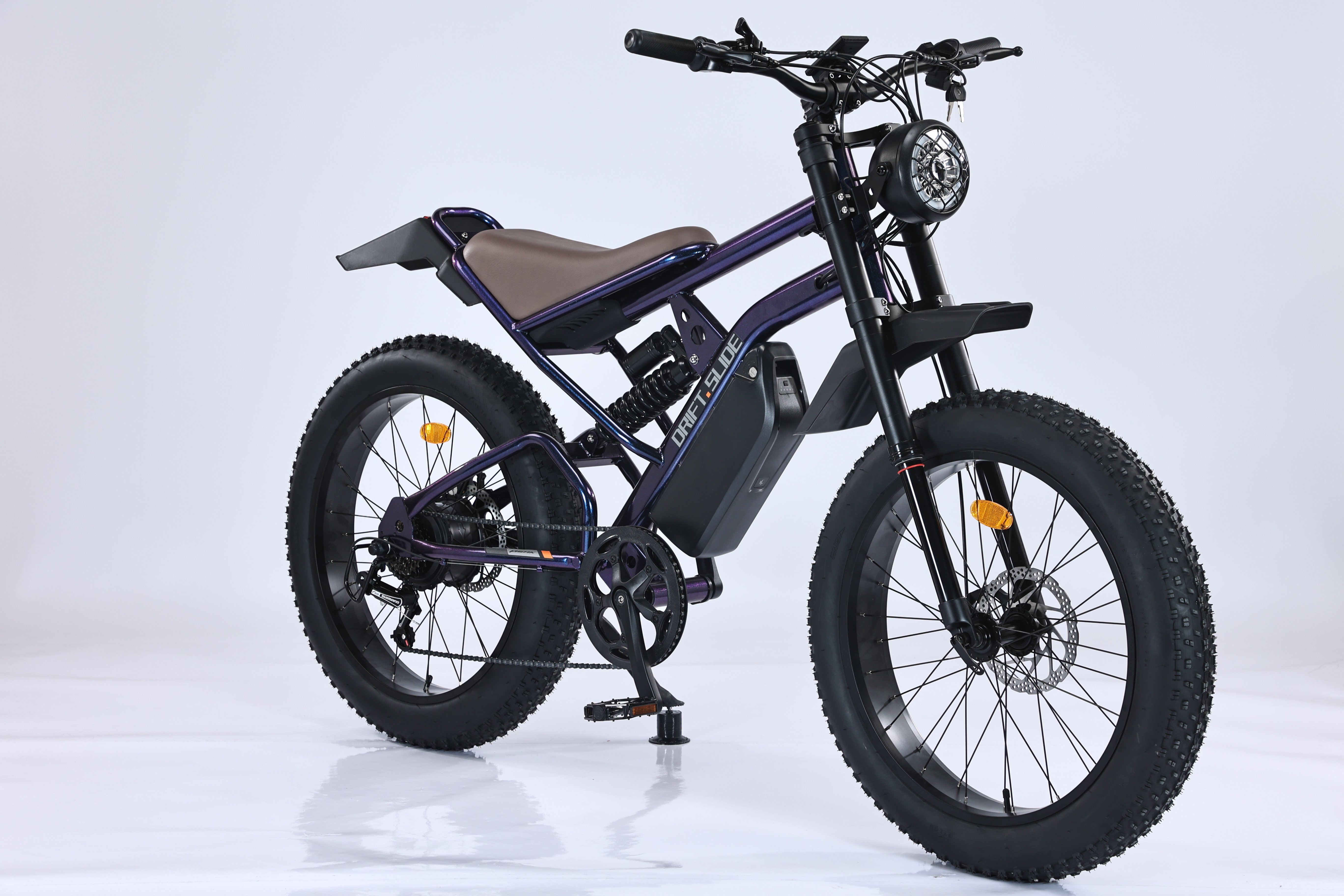

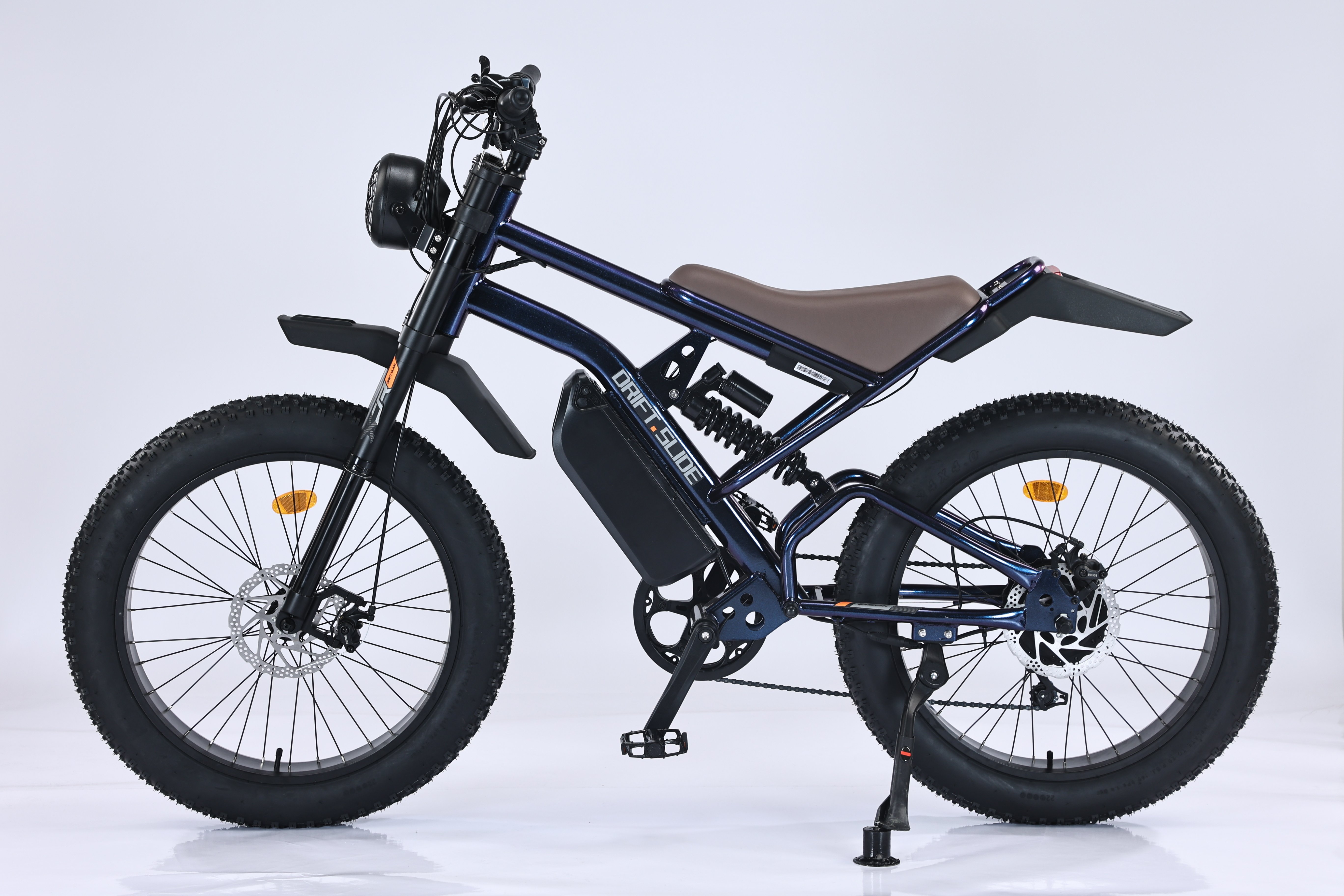

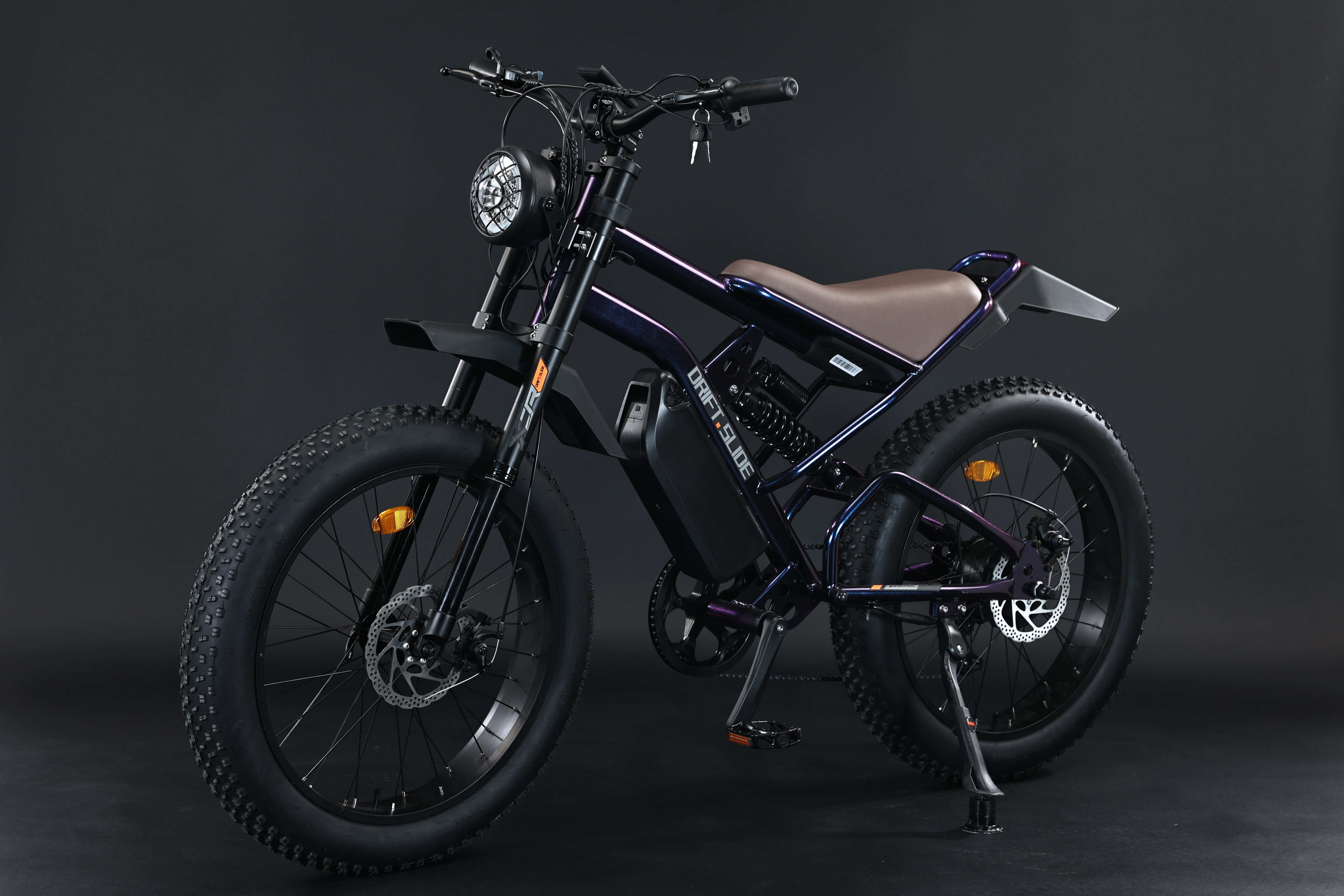

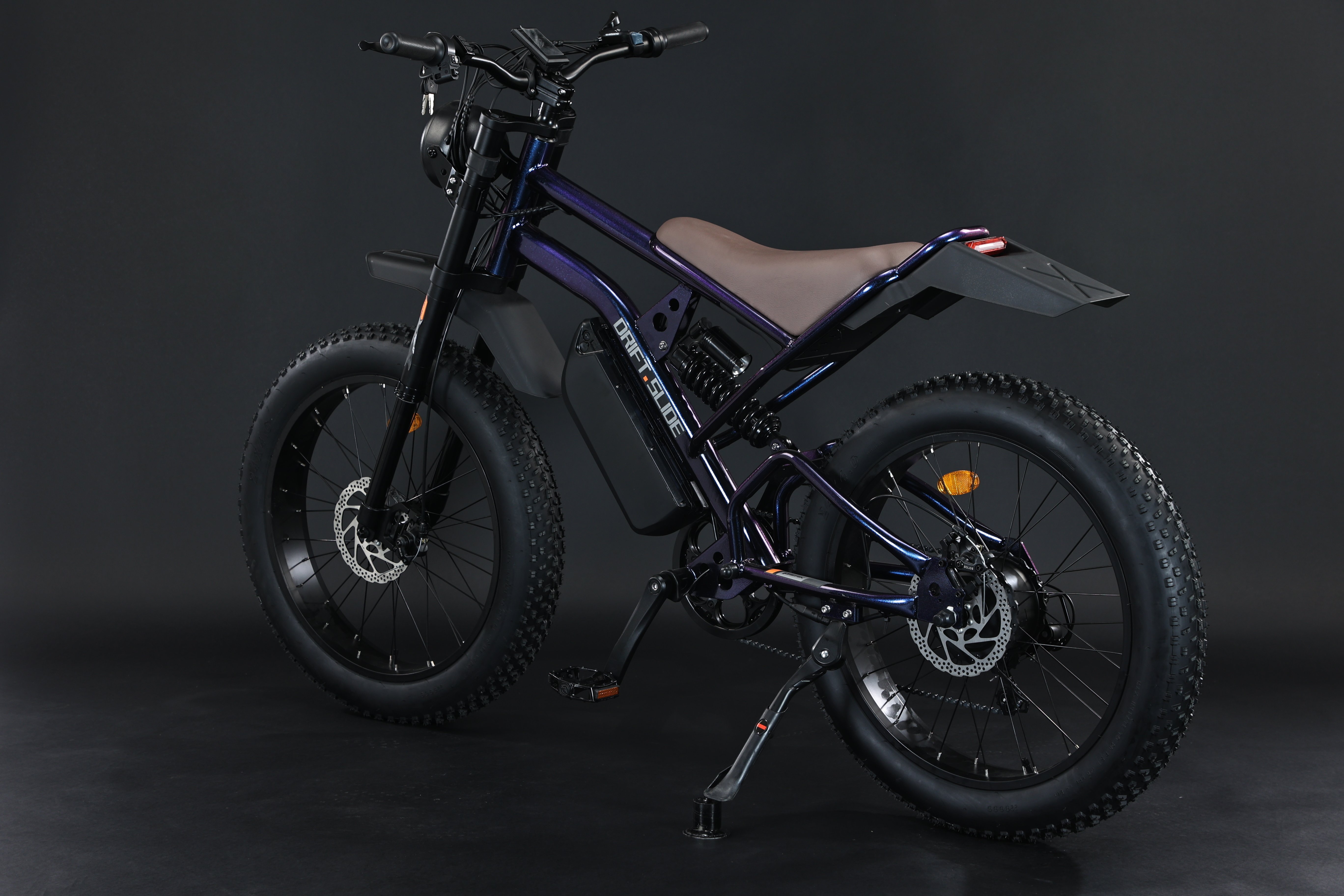

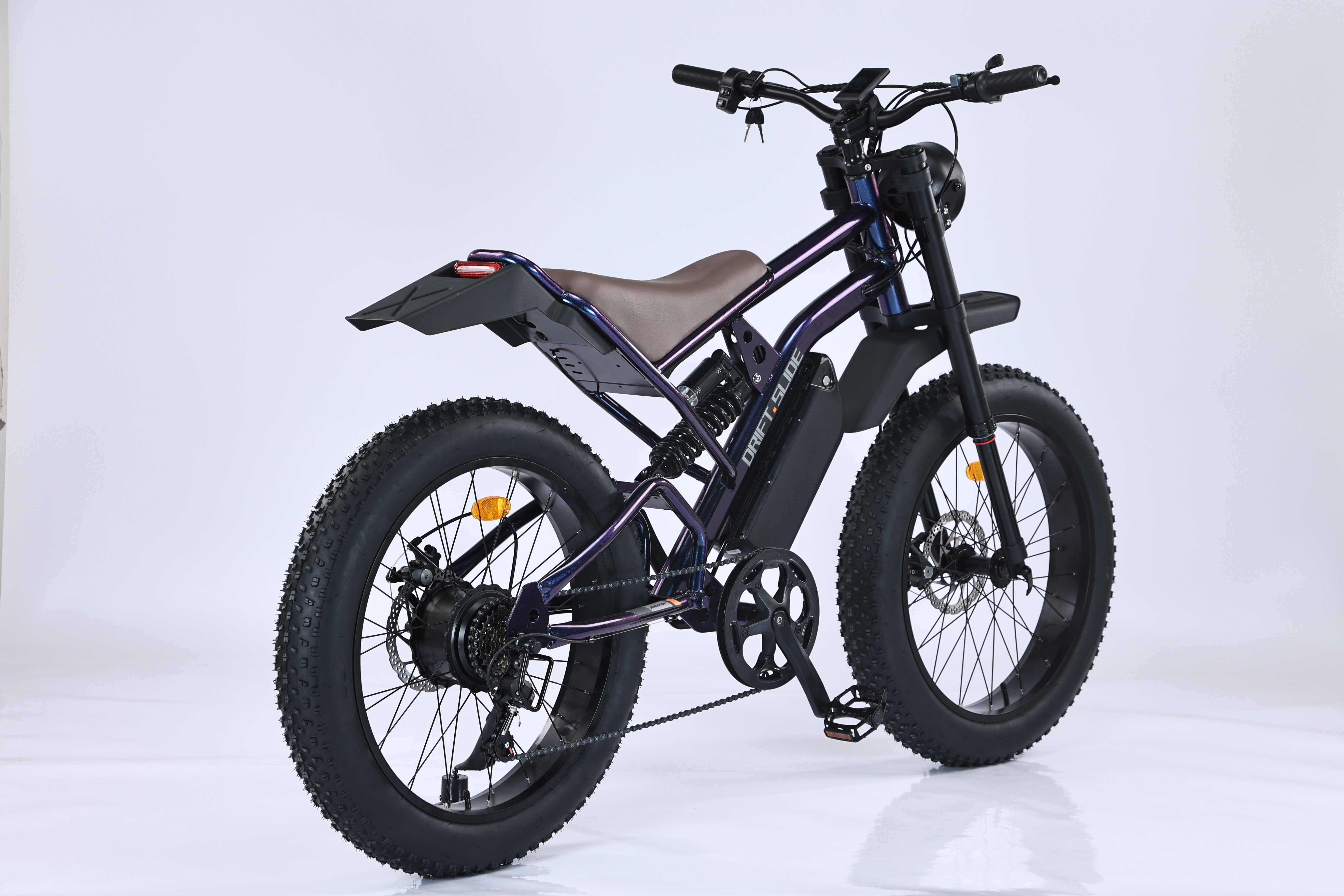

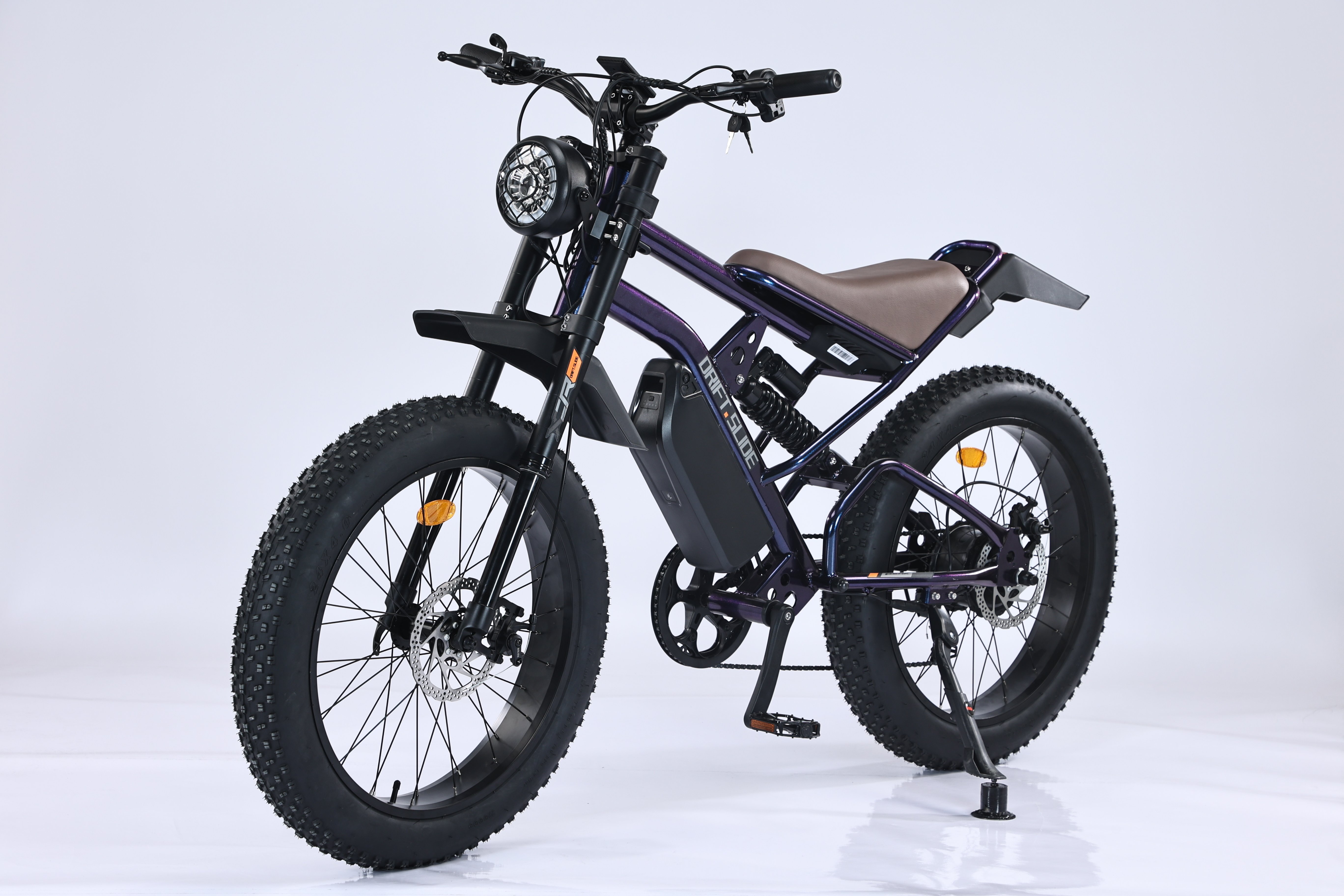

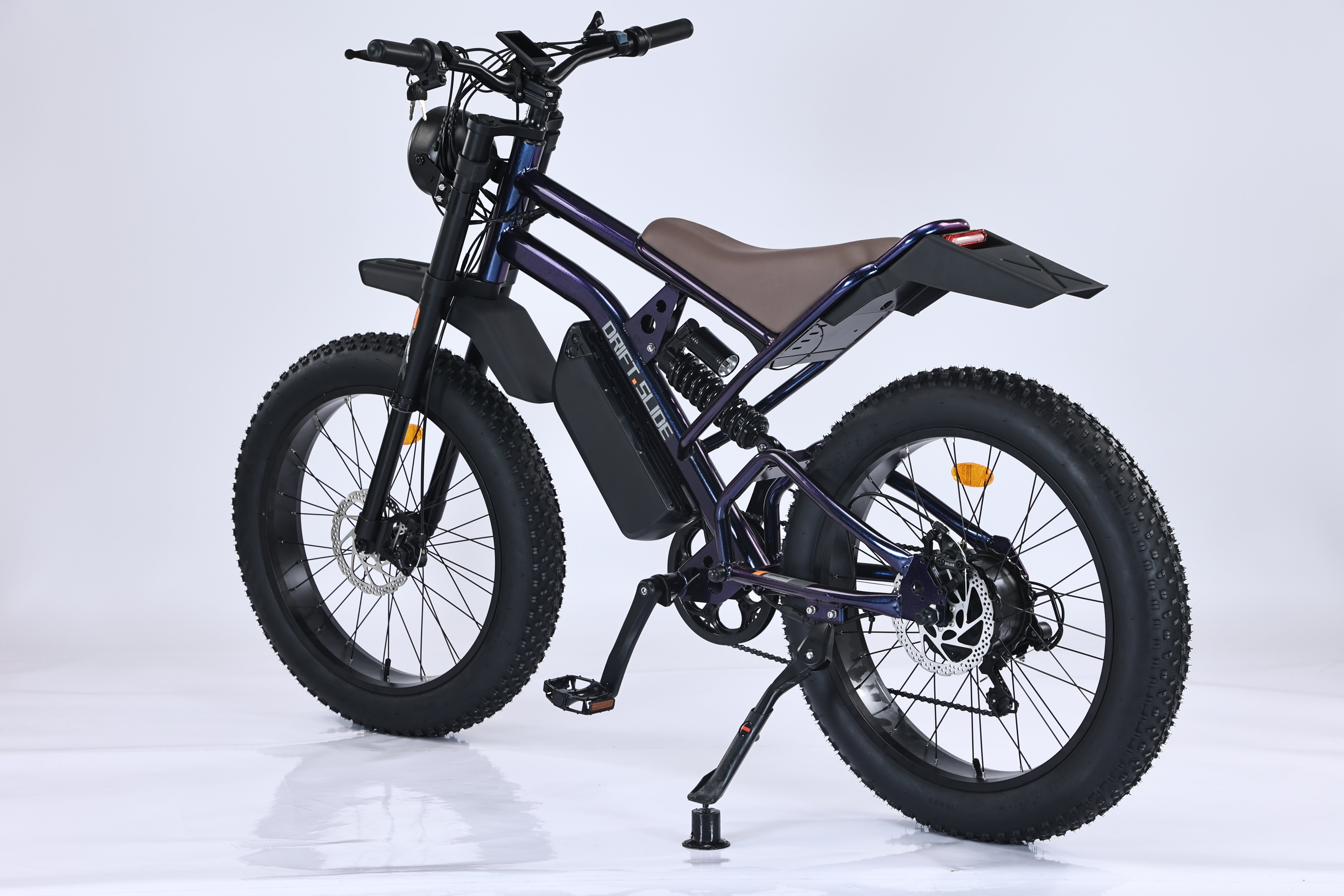

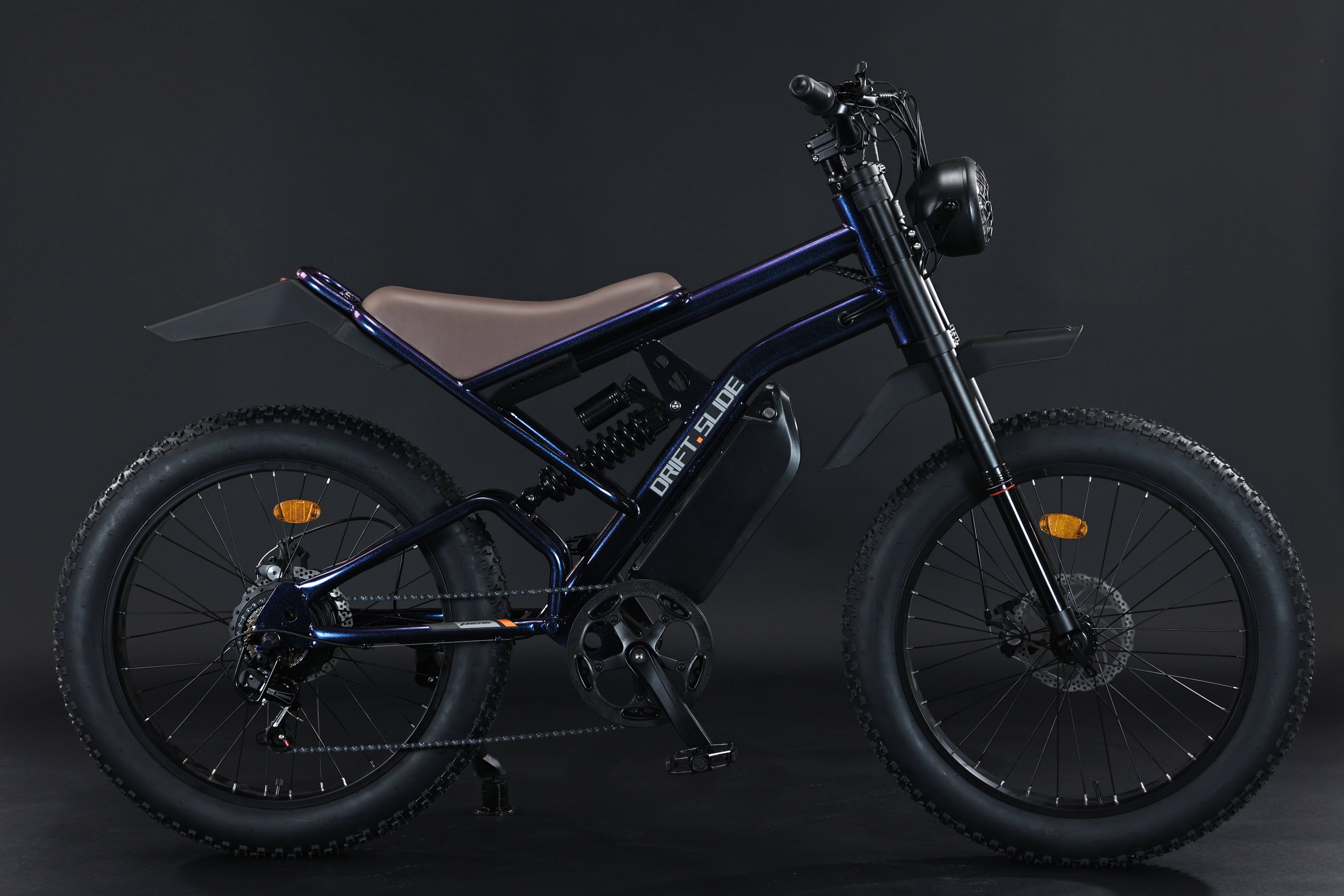

GT-C1 Chameleon New Design 750W Mountain Electric Bicycle Out Door With Fat Tire 24'' Ebike
Details:
| Maximum speed limit | 45km/h | |
| Battery life on full charge | 70~80km(25℃calm. The speed of 75kg body weight asphalt flat pavement is 20 km/h constant speed measurement) | |
| Battery life on full charge | 48V, lithium battery Plastic shell(20.8Ah ) | |
| The cell | Domestic 18650 power cell | |
| Controller | 48V 30A | |

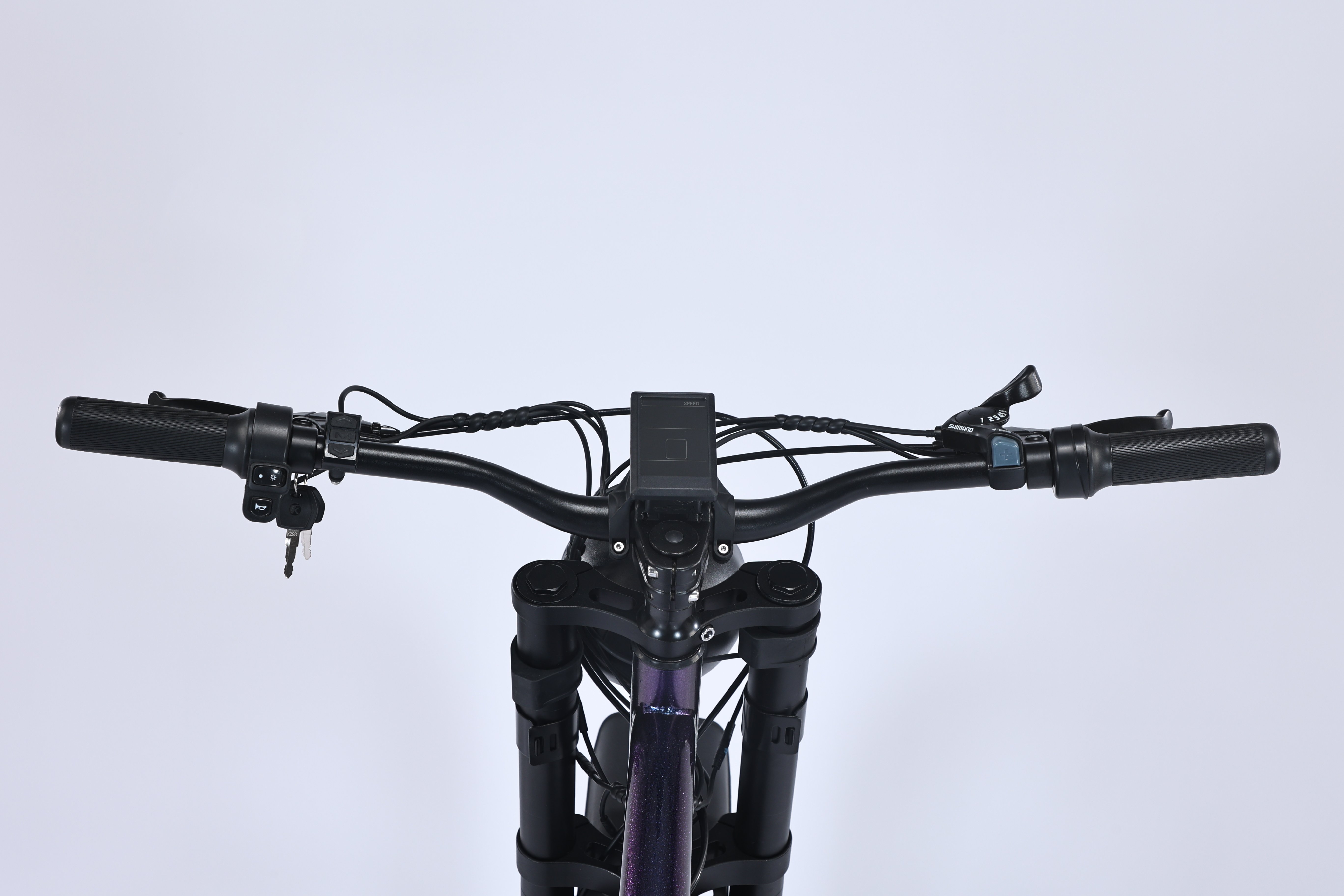

| Meter | Middle-set black and white LCD portrait screen | |
| Climbing slope | About 30%(slope)It's about 20 degrees(prerequisite: 75Kg) | |
| Ride the road | Cement, asphalt pavement, flat dirt pavement, not higher than 5cm steps, not more than 3cm wide channel | |
| Drive mode | rear wheel drive | |

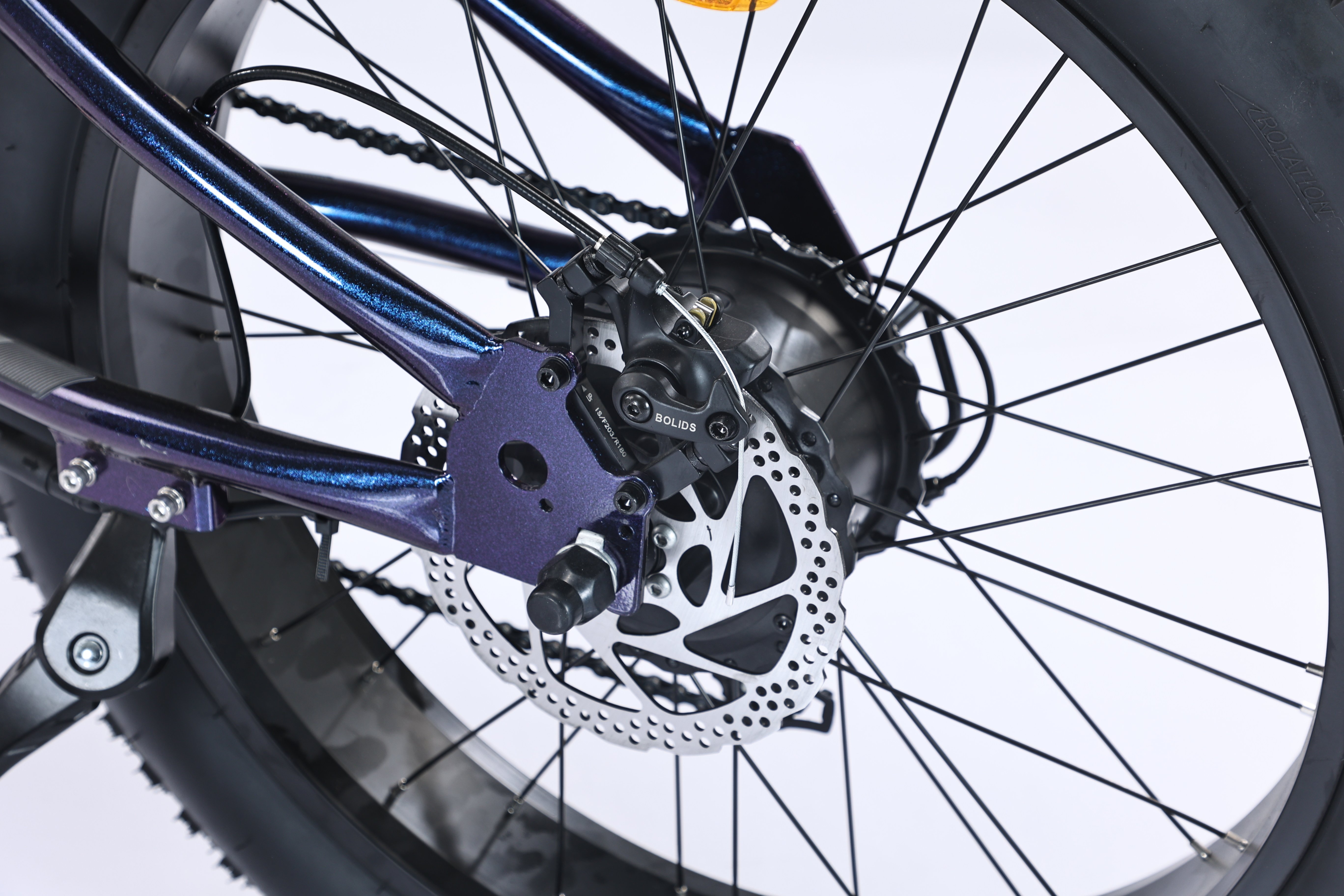

| Brake mode (brake handlebars) | Front and rear mechanical disc brake | |
| Braking distance | 22 km/h speed 1, single brake brake distance from dry 7m 2. The dry braking distance is 4.4m | |
| Charging time | About 6~7h | |
| Charging temperature range | usable(-10~40℃) suggest(-10~30℃) | |
| Applicable to the crowd | Height of 1.7m | |

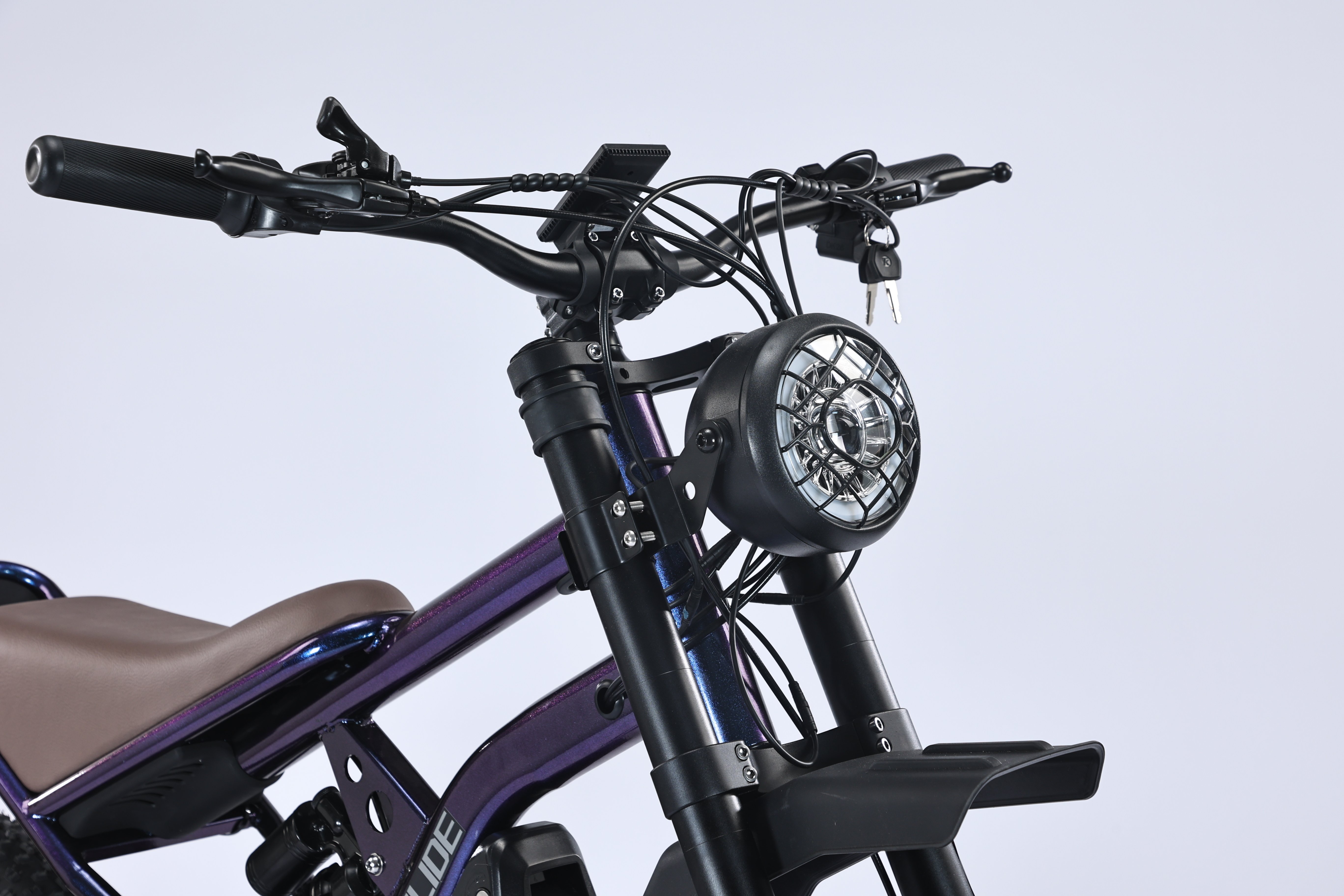

| Headlight | When the vehicle is on, the running light is on and the left switch control headlights on / off | |

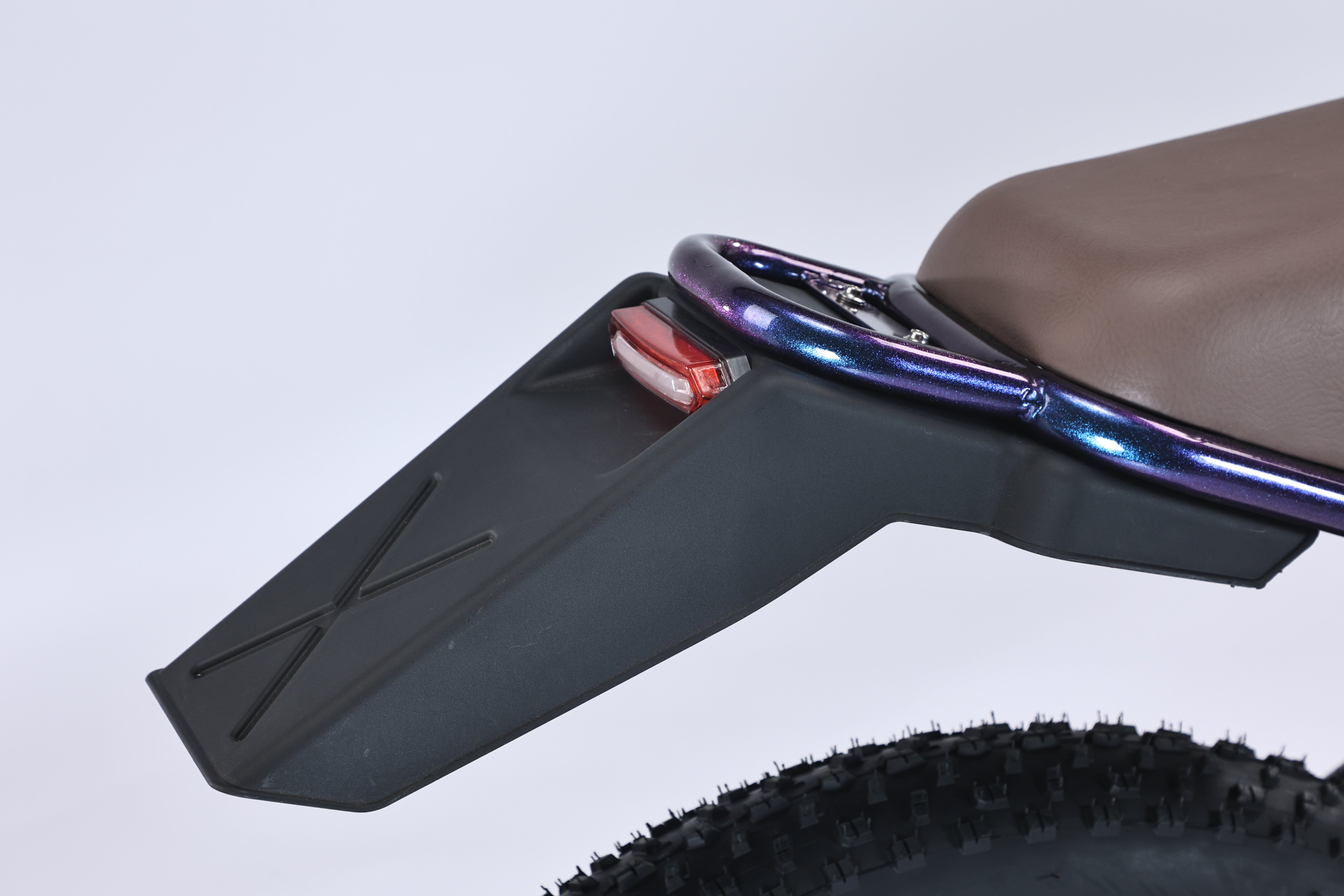

| Tail light | LED tail light (Running lights on when opening and brake lights on when braking) | |
| Loudspeaker | Left switch control | |
| Carframe | high-carbon steel | |

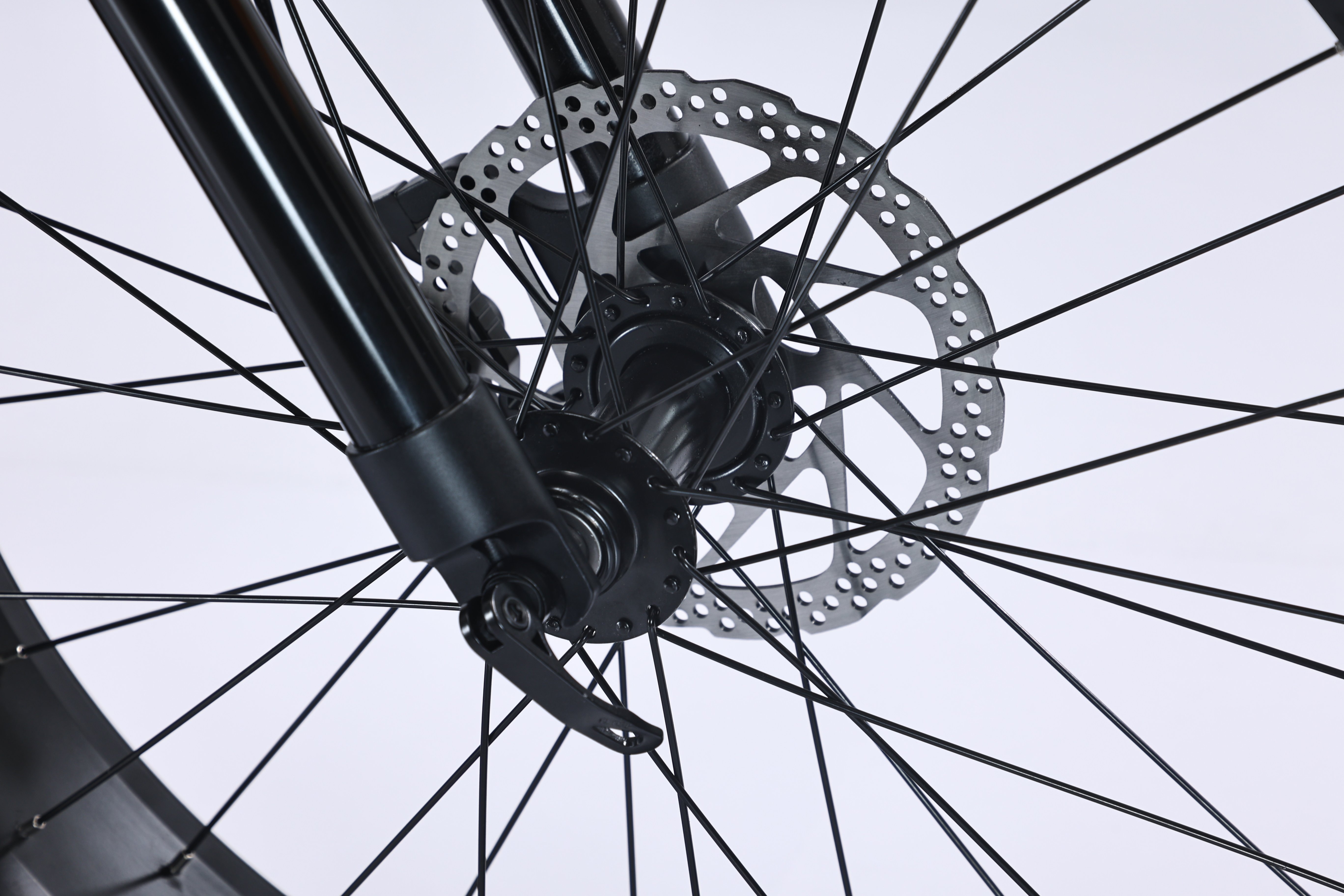

| Front wheel | Driven wheel 24 * 4.0 (spoke hub) inflatable tire 180 brake disc | |

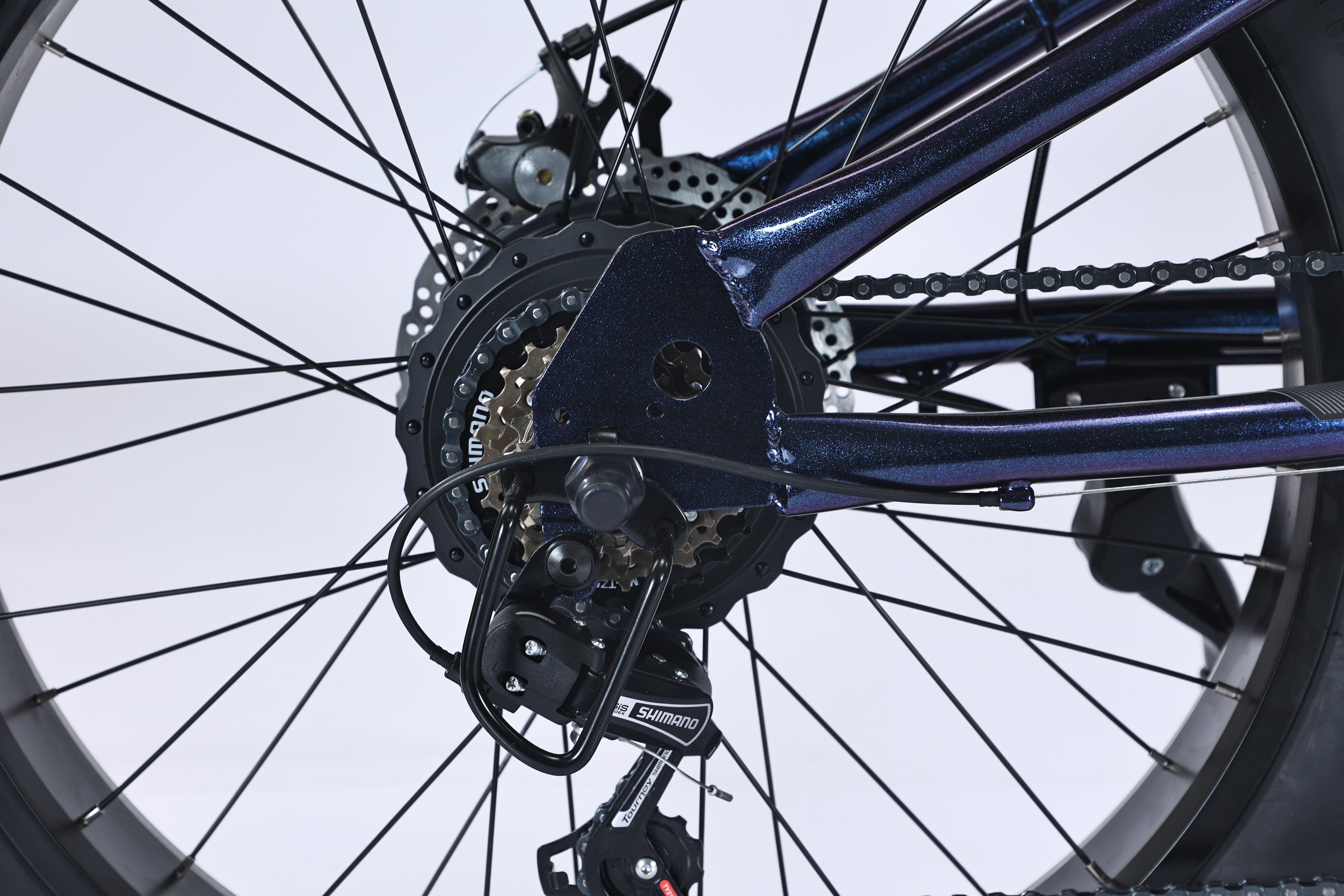

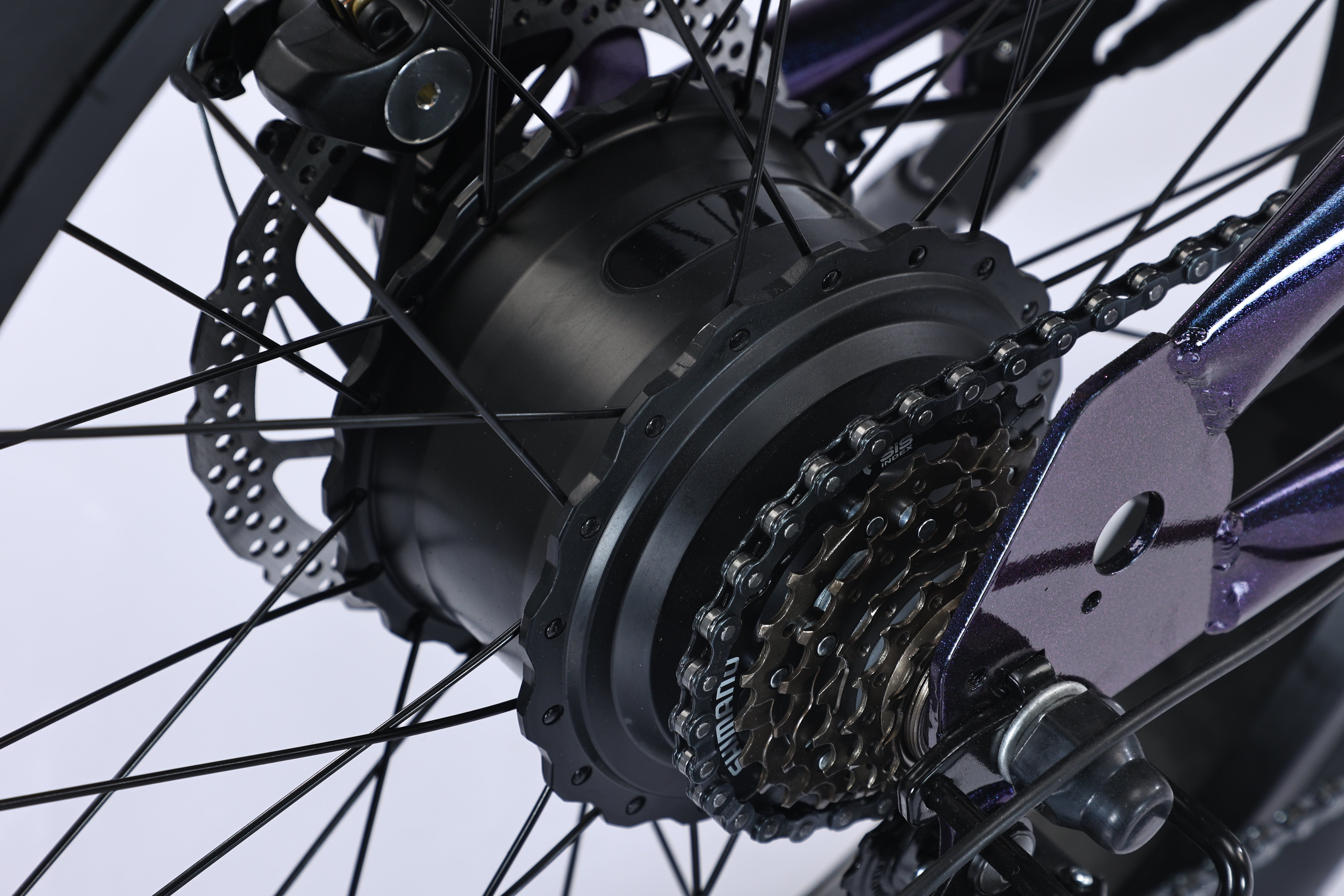

| Rear-wheel | 48V 750W drive wheel 24 * 4.0 inflatable tire 180 brake disc | |
| tyre | 24 Inch | |

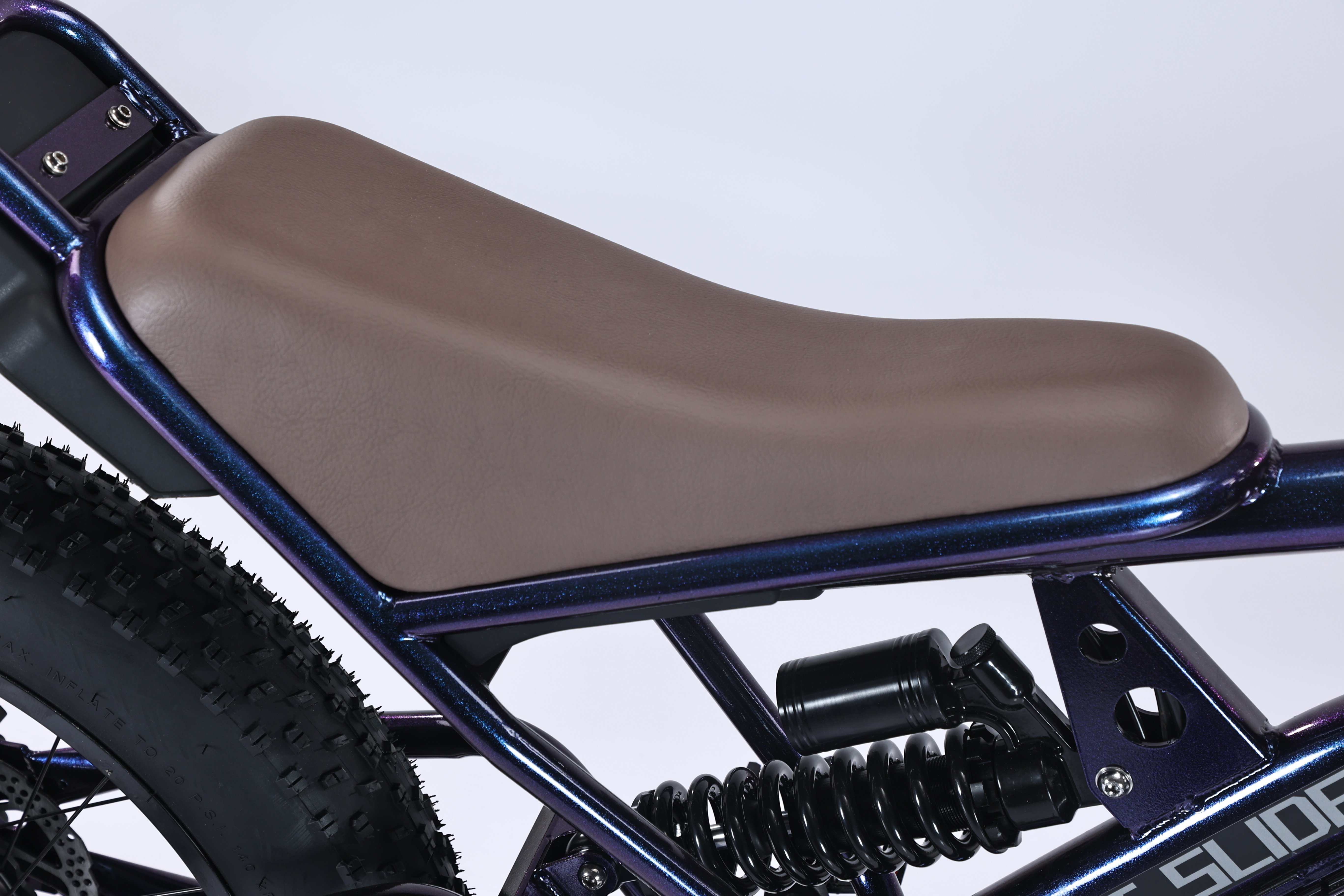

| shock mitigation system | Front: air pressure damping; rear: oil pressure damping | |
| working temperature | (-10~40℃) | |
| Storage temperature | usable(-20~40℃) suggest(5~30°C) | |
| Maximum storage time | About 150 days | |
| Weel base | 1200mm | |
| Ground clearance | 120mm | |
| steering angle | 54 ° | |
| Whether to fold | NO | |
| Parking method | Parking rack parking | |
| mudguard | Bring front and rear fender | |
| Overall dimensions of a car | 1880mm*1200mm*780mm | |
| Vehicle protection grade | IP34 | |
| Charger | Input 54.6V 2A | |
| Packing specification: | bewrite | |
| Packageing style | Simple | |
| External box material | Wood to package | |
| Outbox pattern | Simple | |
| packing measurement | 1600mm*380mm*900mm | |
| Packaging buffer material | EPS | |
| net weight | 42.3kg | |
